1SBL281024R8510

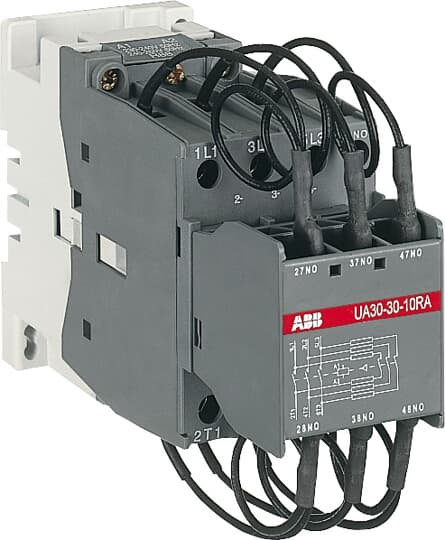

UA30 range – 30kvar 400V, 1NO aux, 380-400V AC coil The UA30-30-10RA 380-400V 50Hz / 400-415V 60Hz is a 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current. The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below). The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making. Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V. The UA..RA contactors are fitted with a special front mounted block, which ensures the serial insertion of 3 damping resistors into the circuit to limit the current peak on energization of the capacitor bank. Their connection also ensures capacitor precharging in order to limit the second current peak occurring upon making of the main poles. The insertion of resistors allows to damp the highest current peak of the capacitor when switching on, whatever its level. The UA..RA series 3-pole contactors are of the block type design. - Main poles and auxiliary contacts: 3 main poles, 1 built-in auxiliary contact - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.

1SBL281024R8510 – UA30-30-10RA, 380-400V AC coil ABB UA..RA Capacitor Contactors is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.

ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.

Applications

• Industrial automation
• Motor control systems
• Power distribution infrastructure
• Commercial electrical installations
