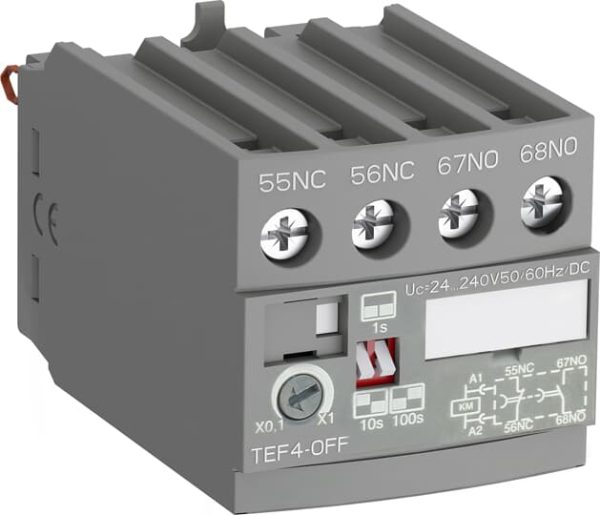

1SBN020114R1000 — 1SBN020114R1000 - TEF4-OFF ABB Contactor Relays Accessories

Key specifications

Rated voltage (Ue)
24 V  ·  240 V
Number of poles
2P
Rated Frequency
50 / 60
Degree of protection (IP)
IP20
Product Series
Accessories for Block Contactors
ABB Accessories for Block Contactors · Authorised distributor
Contactor Relays AccessoriesContactorsMotor Control and Drives

1SBN020114R1000 – TEF4-OFF ABB Contactor Relays Accessories

Buy 1SBN020114R1000 – TEF4-OFF ABB Contactor Relays Accessories from ABB. Genuine ABB component for automation, motor control and electrical installations. TEF4-OFF
Order code 1SBN020114R1000

Your price

Original price was: R1400.99.Current price is: R770.55.
Save 45%

Excluding VAT · per unit · volume pricing available on request

Request a quote
Product datasheet View on ABB.com
Genuine ABB product — supplied through authorised channels.
Fast delivery across South Africa & Africa (lead time confirmed on order).
Off-site stock — availability is confirmed after quote request or order placement.

Overview

TEF4-OFF – OFF-delay, 0.1…100s, 1NO 1NC, aux, 24-240V AC/DC for NFZ range TEF4-OFF is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 – A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24…240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-OFF is activated by opening the device on which the timer is mounted. The OFF-delay version operates without additional control supply.

1SBN020114R1000 – TEF4-OFF ABB Contactor Relays Accessories is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution applications.

ABB products are widely used across commercial and industrial installations where reliability, safety, and long operational life are required.

Applications

  • Industrial automation
  • Motor control systems
  • Power distribution infrastructure
  • Commercial electrical installations

Browse Related Categories

Contactor Relays Accessories | Motor Control and Drives | Contactors

Technical specifications

Data supplied by ABB. Please confirm against the official datasheet before ordering.

Ordering & identification

Order code
1SBN020114R1000
Product Name
TEF4-OFF
Product Series
Accessories for Block Contactors
Brand
ABB  ·  ABB Group  ·  ABB Limited
International GTIN
3471523130654.0

Electrical ratings & operation

Rated voltage (Ue)
24 V  ·  240 V
Rated Frequency
50 / 60
Rated operational voltage
24 V  ·  240 V
Operating Voltage
24 V  ·  240 V
Number of poles
2P
Degree of protection (IP)
IP20

Power & coil characteristics

Power Loss
0.1 W
Con Fre Air The Cur
5 A

Environment

Ambient air temperature
-40 … +80  ·  '-25 … +70

Documents & media

Datasheet
Download datasheet
RoHS declaration
Download RoHS declaration
Declaration of conformity
Download declaration of conformity
Dimensions Drawings
Download dimension drawings
ABB product page
View on ABB.com
Deep Link
Open deep link
360° view
Open 360° view

Documents & downloads

Official ABB documentation for this order code.

Technical datasheetPDF · ABB Library RoHS declarationPDF · Compliance Declaration of conformityPDF · Compliance Dimension drawingsPDF · Engineering View on ABB.comManufacturer page 360° product viewInteractive

Ordering & delivery

How to order

Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.

Stock & lead time

Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.

Delivery

Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
