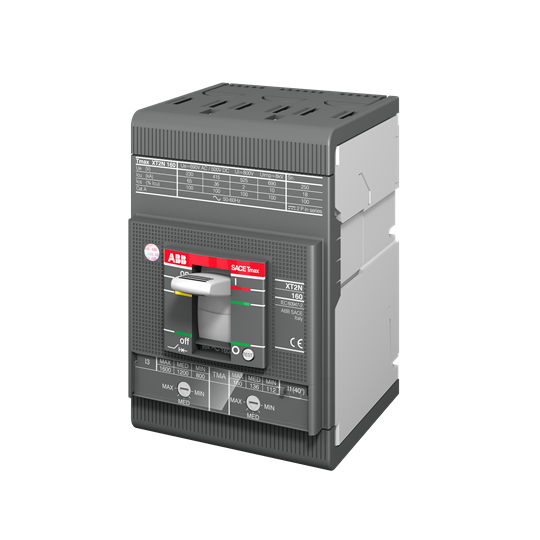

1SDA067044R1 — 1SDA067044R1 - XT2N 160 MF 1 Im=14 3p F F ABB MCCB - Tmax XT

Key specifications

Rated current (Iu)
1 A
Rated voltage (Ue)
690 V
Number of poles
3P
Max Break Capacity
36kA
Rated Frequency
50 / 60
Product Series
SACE Tmax XT
ABB SACE Tmax XT · Authorised distributor
MCCB – Tmax XTMoulded Case Circuit Breakers (MCCBs)Power Distribution & Protection

1SDA067044R1 – XT2N 160 MF 1 Im=14 3p F F ABB MCCB – Tmax XT

Buy 1SDA067044R1 – XT2N 160 MF 1 Im=14 3p F F ABB MCCB – Tmax XT from ABB. Genuine ABB component for automation, motor control and electrical installations. XT2N 160 MF 1 Im=14 3p F F
Order code 1SDA067044R1

Your price

Original price was: R5296.95.Current price is: R2913.33.
Save 45%

Excluding VAT · per unit · volume pricing available on request

Request a quote
Product datasheet View on ABB.com
Genuine ABB product — supplied through authorised channels.
Fast delivery across South Africa & Africa (lead time confirmed on order).
Off-site stock — availability is confirmed after quote request or order placement.

Overview

1SDA067044R1 – XT2N 160 MF 1 Im=14 3p F F ABB MCCB – Tmax XT

36kA 3 Pole MCCB Magnetic C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MF Iu 1 A I3=14 A 1SDA067044R1 – XT2N 160 MF 1 Im=14 3p F F ABB MCCB – Tmax XT is a genuine ABB electrical component designed for industrial automation, motor control, and power distribution

XT2N 160 MF 1 Im=14 3p F F forms part of the ABB SACE Tmax XT range.

Technical Specifications

  • Rated Current: 1
  • Breaking Capacity: 36kA
  • Number of Poles: 3P
  • Rated Voltage: 690
  • Operating Voltage: 500|690
  • Rated Operation Voltage: 500|690
  • Rated Frequency: 50 / 60
  • Power Loss: 2
  • GTIN: 8015644009502.0
  • Brand: ABB, ABB Group, ABB Limited
  • Series: SACE Tmax XT
  • Part Number: 1SDA067044R1

Key Features

  • Part of the ABB SACE Tmax XT range
  • 1 rated current
  • 36kA breaking capacity
  • 3P pole configuration
  • Includes ABB GTIN identification for product traceability

Applications

  • Electrical distribution boards
  • Circuit protection systems
  • Commercial installations
  • Industrial power systems

Downloads & Product Resources

Datasheet | ABB Product Page | Declaration of Conformity | RoHS Declaration | Dimension Drawings

Browse Related Categories

MCCB – Tmax XT | Moulded Case Circuit Breakers (MCCBs) | Power Distribution & Protection

Technical specifications

Data supplied by ABB. Please confirm against the official datasheet before ordering.

Ordering & identification

Order code
1SDA067044R1
Product Name
XT2N 160 MF 1 Im=14 3p F F
Product Series
SACE Tmax XT
Brand
ABB  ·  ABB Group  ·  ABB Limited
International GTIN
8015644009502.0

Electrical ratings & operation

Rated current (Iu)
1 A
Rated voltage (Ue)
690 V
Rated Frequency
50 / 60
Rated operational voltage
500 V  ·  690 V
Operating Voltage
500 V  ·  690 V
Max Break Capacity
36kA
Number of poles
3P

Power & coil characteristics

Power Loss
2 W

Documents & media

Datasheet
Download datasheet
RoHS declaration
Download RoHS declaration
Declaration of conformity
Download declaration of conformity
Dimensions Drawings
Download dimension drawings
ABB product page
View on ABB.com
Deep Link
Open deep link

Documents & downloads

Official ABB documentation for this order code.

Technical datasheetPDF · ABB Library RoHS declarationPDF · Compliance Declaration of conformityPDF · Compliance Dimension drawingsPDF · Engineering View on ABB.comManufacturer page

Ordering & delivery

How to order

Contact us for bulk pricing, lead times and ordering codes. Add the item to your cart to order online, or request a quotation if you need a formal quote document, project pricing or a written lead time.

Stock & lead time

Some items are held off-site rather than in our Johannesburg warehouse. Where that is the case, availability is confirmed once a quote is requested or an order is placed, and the lead time is confirmed in writing on your quotation.

Delivery

Nationwide delivery across South Africa, export delivery to the rest of Africa on request, and collection available from our Johannesburg branch.
